MACROVUE-P

MACROVUE-P imaging power surpasses modern standards deliveringpremium FA Lab features to semiconductor fabrication facilities.

ODIS is the latest Acoustic Microscopy Software with rich technicalcontent built on current platforms and industry feedback. Advanced analy-sis is provided through quantitative tools for measurement and classifica-tion of parts.

The Analysis version of ODlIS allows non-scanning computers to virtuallyscan, view, and analyze data for simultaneous real-time analysis or postcollection review.

Why Choose Us?

OKOS is the first choice to customers looking for a SAM system because we leverage our flexibleODIS software, always ready to support, andpartnership with PVA TePla to provide compa-nies with the best possible SAM experience.


● We service customers worldwide through anextensive channel of distributors and representatives.

● We are the premier solutions provider of SAMsystems and instrumentation worldwide.

● We offer over 15 flexible and ready-to-usesystems and components.

Defect Detection

● Multiple Zones

● Near Surface

● Sub Surface

● Inside Part

About MACROVUE-P
Maintenance Free Scan Axis

Motor: Quad Linear Servo
Max Velocity: Up to 2000 mm/s
Accuracy & Repeatability: +/- 0.5micron


Scan Envelope: Up to 2500 mm


Low Maintenance Step Axis
Step Envelope :Up to 1500 mm

Low Maintenance Focus AxisFocus Envelope: Up to 150 mm
TankDepth:Up to 300 mm
Customer InterfaceDual 27"HD LED Monitors
FixturesCustom Fixtures
Optional Through Transmission
LED illumination
InstrumentationDigital Pulser Receiver
Optional second channel
Up to 12 GHz Digitizer
Scan AreaUp to 2500mm x 1500 mm

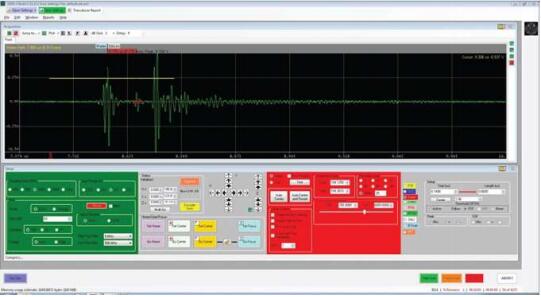

OKOS Digital Imaging System (ODIS

MACRoVUE-P imaging power surpasses modern standards deliveringpremium FA Lab features to semiconductor fabrication facilities.

ODIS is the latest Acoustic Microscopy Software with rich technicalcontent built on current platforms and industry feedback. Advanced analy-sis is provided through quantitative tools for measurement and classifica-tion of parts.

The Analysis version of ODIS allows non-scanning computers to virtuallyscan, view, and analyze data for simultaneous real-time analysis or postcollection review.


Includes Software Models

● Basic (user friendly)

● Advanced (detailed analysis)

● Production (automated scanning)

● Offline Analysis (virtual scanning)

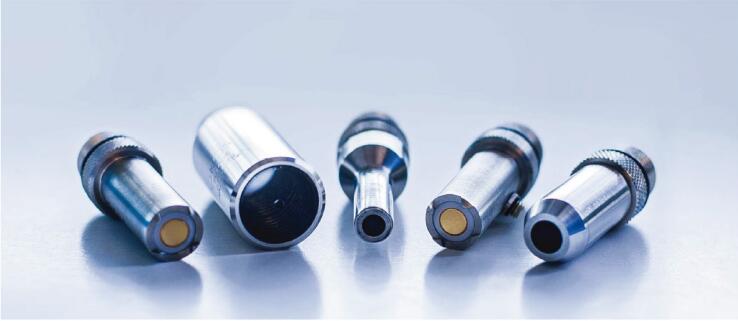

Application Specific Transducers

Application Specific Transducers for the highest quality resolution. Multiple transducer design for enhanced scan capability.
